Derived class that defines proof structure for Ultra proofs, as well as supporting functions. More...

#include <ultra_flavor.hpp>

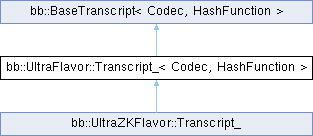

Inheritance diagram for bb::UltraFlavor::Transcript_< Codec, HashFunction >:

Public Types
using	Base = BaseTranscript< Codec, HashFunction >

Public Types inherited from bb::BaseTranscript< Codec, HashFunction >
using	Codec = Codec

using	HashFunction = HashFunction

using	DataType = typename Codec::DataType

using	Proof = std::vector< DataType >

Public Member Functions
	Transcript_ ()=default

void	deserialize_full_transcript (size_t public_input_size, size_t virtual_log_n=VIRTUAL_LOG_N)
	Takes a FULL Ultra proof and deserializes it into the public member variables that compose the structure. Must be called in order to access the structure of the proof.

void	serialize_full_transcript (size_t virtual_log_n=VIRTUAL_LOG_N)
	Serializes the structure variables into a FULL Ultra proof. Should be called only if deserialize_full_transcript() was called and some transcript variable was modified.

Public Member Functions inherited from bb::BaseTranscript< Codec, HashFunction >
	BaseTranscript ()

	BaseTranscript (const Proof &proof)

std::vector< DataType >	export_proof ()
	Return the proof data starting at proof_start.

void	load_proof (const std::vector< DataType > &proof)
	Verifier-specific method. The verifier needs to load a proof or its segment before the verification.

size_t	get_proof_size ()

void	enable_manifest ()

std::vector< ChallengeType >	get_challenges (std::span< const std::string > labels)
	After all the prover messages have been sent, finalize the round by hashing all the data and then create the number of requested challenges.

std::array< ChallengeType, N >	get_challenges (const std::array< std::string, N > &labels)
	Wrapper around get_challenges to handle array of challenges.

std::vector< ChallengeType >	get_dyadic_powers_of_challenge (const std::string &label, size_t num_challenges)
	Get a challenge and compute its dyadic powers [δ, δ², δ⁴, ..., δ^(2^(num_challenges-1))].

void	add_to_hash_buffer (const std::string &label, const T &element)
	Adds an element to the transcript.

void	send_to_verifier (const std::string &label, const T &element)
	Adds a prover message to the transcript, only intended to be used by the prover.

T	receive_from_prover (const std::string &label)
	Reads the next element of type `T` from the transcript, with a predefined label, only used by verifier.

ChallengeType	get_challenge (const std::string &label)

TranscriptManifest	get_manifest () const

void	print ()

void	test_set_proof_parsing_state (std::ptrdiff_t start, size_t written)
	Test utility: Set proof parsing state for export after deserialization.

std::ptrdiff_t	test_get_proof_start () const
	Test utility: Get proof_start for validation.

Static Public Member Functions
static std::shared_ptr< Transcript_ >	prover_init_empty ()

static std::shared_ptr< Transcript_ >	verifier_init_empty (const std::shared_ptr< Transcript_ > &transcript)

Static Public Member Functions inherited from bb::BaseTranscript< Codec, HashFunction >
static std::shared_ptr< BaseTranscript >	convert_prover_transcript_to_verifier_transcript (const std::shared_ptr< BaseTranscript > &prover_transcript)
	Convert a prover transcript to a verifier transcript.

static std::vector< DataType >	serialize (const T &element)

static T	deserialize (std::span< const DataType > frs)

static std::shared_ptr< BaseTranscript >	prover_init_empty ()
	For testing: initializes transcript with some arbitrary data so that a challenge can be generated after initialization. Only intended to be used by Prover.

static std::shared_ptr< BaseTranscript >	verifier_init_empty (const std::shared_ptr< BaseTranscript > &transcript)
	For testing: initializes transcript based on proof data then receives junk data produced by BaseTranscript::prover_init_empty(). Only intended to be used by Verifier.

Public Attributes
std::vector< FF >	public_inputs

Commitment	w_l_comm

Commitment	w_r_comm

Commitment	w_o_comm

Commitment	lookup_read_counts_comm

Commitment	lookup_read_tags_comm

Commitment	w_4_comm

Commitment	z_perm_comm

Commitment	lookup_inverses_comm

std::vector< bb::Univariate< FF, BATCHED_RELATION_PARTIAL_LENGTH > >	sumcheck_univariates

std::array< FF, NUM_ALL_ENTITIES >	sumcheck_evaluations

std::vector< Commitment >	gemini_fold_comms

std::vector< FF >	gemini_fold_evals

Commitment	shplonk_q_comm

Commitment	kzg_w_comm

Additional Inherited Members
Static Public Attributes inherited from bb::BaseTranscript< Codec, HashFunction >
static constexpr bool	in_circuit

static constexpr size_t	CHALLENGE_BUFFER_SIZE

Protected Member Functions inherited from bb::BaseTranscript< Codec, HashFunction >
void	add_element_frs_to_hash_buffer (const std::string &label, std::span< const DataType > element_frs)
	Adds challenge elements to the current_round_buffer and updates the manifest.

void	serialize_to_buffer (const T &element, Proof &proof_data)
	Serializes object and appends it to proof_data.

T	deserialize_from_buffer (const Proof &proof_data, size_t &offset) const
	Deserializes the frs starting at offset into the typed element and returns that element.

Protected Attributes inherited from bb::BaseTranscript< Codec, HashFunction >
Proof	proof_data

Detailed Description

template<typename Codec, typename HashFunction>
class bb::UltraFlavor::Transcript_< Codec, HashFunction >

Derived class that defines proof structure for Ultra proofs, as well as supporting functions.

Definition at line 373 of file ultra_flavor.hpp.

Member Typedef Documentation

◆ Base

template<typename Codec , typename HashFunction >

using bb::UltraFlavor::Transcript_< Codec, HashFunction >::Base = BaseTranscript<Codec, HashFunction>

Definition at line 375 of file ultra_flavor.hpp.

Constructor & Destructor Documentation

◆ Transcript_()

template<typename Codec , typename HashFunction >

bb::UltraFlavor::Transcript_< Codec, HashFunction >::Transcript_ ( )

default

Member Function Documentation

◆ deserialize_full_transcript()

template<typename Codec , typename HashFunction >

void bb::UltraFlavor::Transcript_< Codec, HashFunction >::deserialize_full_transcript	(	size_t	public_input_size,
		size_t	virtual_log_n = `VIRTUAL_LOG_N`
	)

inline

Takes a FULL Ultra proof and deserializes it into the public member variables that compose the structure. Must be called in order to access the structure of the proof.

Definition at line 415 of file ultra_flavor.hpp.

◆ prover_init_empty()

template<typename Codec , typename HashFunction >

static std::shared_ptr< Transcript_ > bb::UltraFlavor::Transcript_< Codec, HashFunction >::prover_init_empty ( )

inlinestatic

Definition at line 397 of file ultra_flavor.hpp.

◆ serialize_full_transcript()

template<typename Codec , typename HashFunction >

void bb::UltraFlavor::Transcript_< Codec, HashFunction >::serialize_full_transcript ( size_t virtual_log_n = VIRTUAL_LOG_N )

inline

Serializes the structure variables into a FULL Ultra proof. Should be called only if deserialize_full_transcript() was called and some transcript variable was modified.

Definition at line 456 of file ultra_flavor.hpp.

◆ verifier_init_empty()

template<typename Codec , typename HashFunction >

static std::shared_ptr< Transcript_ > bb::UltraFlavor::Transcript_< Codec, HashFunction >::verifier_init_empty ( const std::shared_ptr< Transcript_< Codec, HashFunction > > & transcript )
